Bottom profile

PROFINE 76

Our production has been extended by another quality base profile for use on window system PROFINE76. This is a 6-chamber bottom profile backing, suitable for window system Profine76 massive constructions where the broad base and appropriate thermal insulation corresponding to the respective windowing system. Profine76. The plenum is split lip seal, which works for other types of underlying profiles produced by us. To extrude this kind of profile we make use of the recycled PVC chippings originating during cutting window profiles. The profile’s length as produced amounts to 6 m. The product is delivered in returnable metal pallets. One pallet can contain about 1092 metres of profile. Smaller withdrawal quantities can be negotiated.






















TROCAL

The PV Plast spol. s r.o. company is also a producer of the TROCAL bottom profile. To extrude this kind of profile we make use of the recycled PVC chippings originating during cutting window profiles. To minimize heat loss, a sealing layer is co-extruded onto the profile body. The profile’s length as produced amounts to 6 m.

This bottom profile is suitable for the following window systems:

  • TROCAL 70 mm
  • TROCAL 88 mm
  • KÖMMERLING 88 mm
  • KBE 88 mm
The product is delivered in returnable metal pallets. One pallet can contain about 1100 metres of profile.
Smaller withdrawal quantities can be negotiated.















REHAU

The PV Plast spol. s r.o. company is also a producer of the REHAU bottom profile. This is a universal 5-chamber bottom profile which can be used for the massive construction REHAU system, in which a continuous sealing positioned out of the anchoring axis is required. The profile’s lower side enables the same fixing lugs to be used as those used for the frame profile.

To extrude this kind of profile we make use of the recycled PVC chippings originating during cutting window profiles. To minimize heat loss, a sealing layer is co-extruded onto the profile body.
The profile’s length as produced amounts to 6 m.

The product is delivered in returnable metal pallets. One pallet can contain about 1100 metres of profile.
Smaller withdrawal quantities can be negotiated.

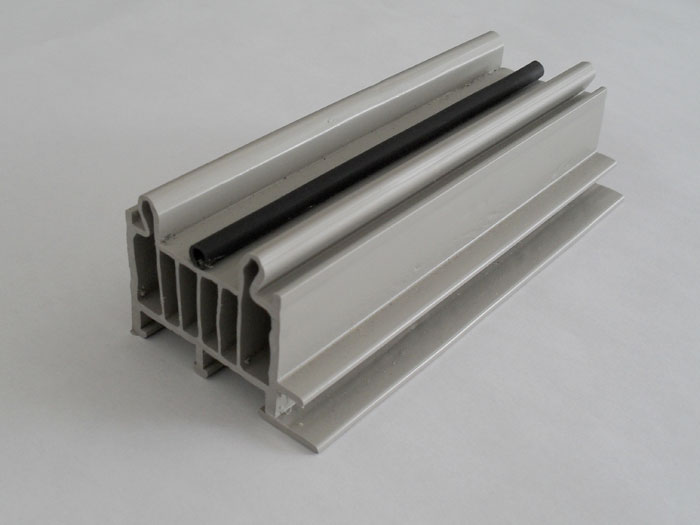

Profine 76 Illustration photograph

Profine 76 drawing



TROCAL illustration photograph

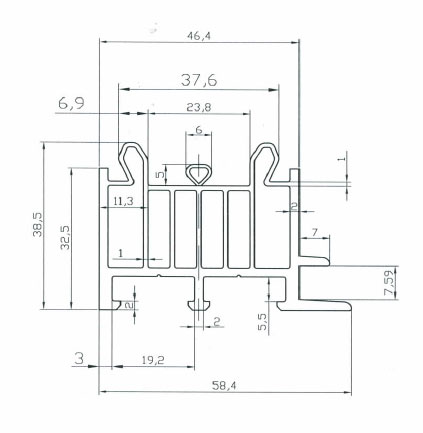

TROCAL drawing

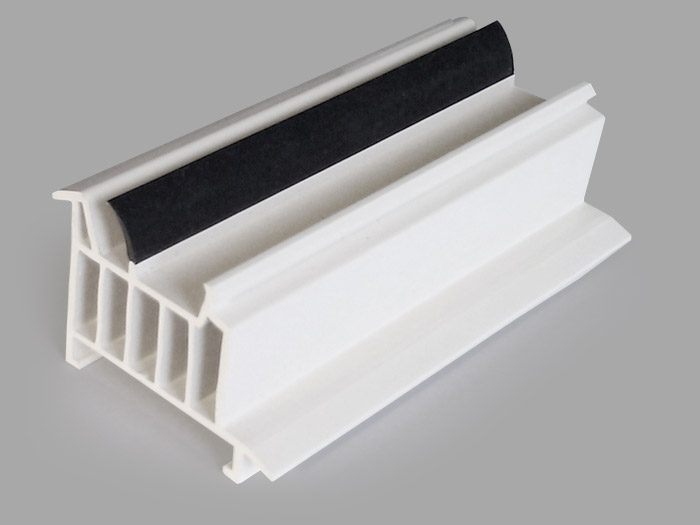

REHAU illustration photograph

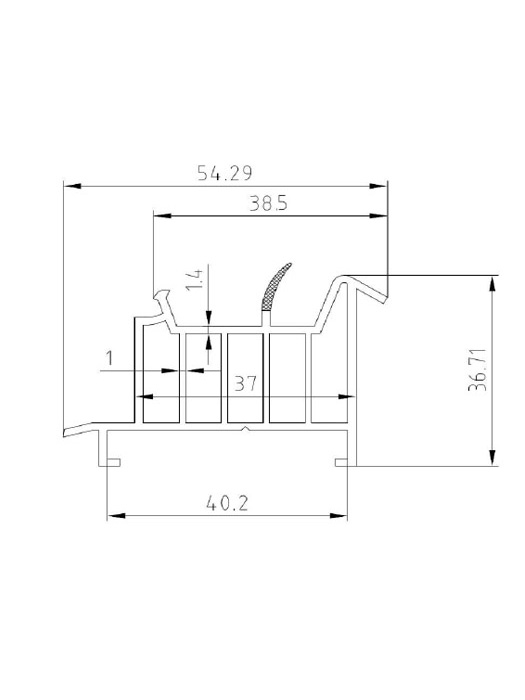

REHAU drawing
